5G Network

What is 5G?

5G Network is that the fifth generation of mobile networks, a big evolution of todays 4G LTE networks. 5G has been designed to fulfill the terribly giant growth in knowledge and property of today’s trendy society, the web of things with billions of connected devices, and tomorrow’s innovations. 5G Network can at first operate in conjunction with existing 4G networks before evolving to completely standalone networks in later releases and coverage expansions

The connected community

In addition to delivering quicker connections and larger capability, a awfully necessary advantage of 5G network is that the quick reaction time noted as latency.
Latency is that the time taken for devices to reply to every alternative over the wireless network. 3G networks had a typical reaction time of a hundred milliseconds, 4G is around thirty milliseconds and 5G Network are going to be as low as
1 msec. this can be just about fast gap up a replacement world of connected applications.

What Will 5G Enable?

5G Network can alter fast property to billions of devices, the web of Things (IoT) and a very connected world.

5G can offer the speed, low latency and property to alter a replacement generation of applications, services and business opportunities that haven't been seen before.

There square measure 3 major classes of use case for 5G:

Massive machine to machine communications – additionally referred to as the web of Things (IoT) that involves connecting billions of devices while not human intervention at a scale not seen before. This has the potential to revolutionise trendy industrial processes and applications together with agriculture, producing and business communications.

Ultra-reliable low latency communications – mission important together with period management of devices, industrial artificial intelligence, vehicle to vehicle communications and safety systems, autonomous driving and safer transport networks. Low latency communications additionally parades a replacement world wherever remote medical aid, procedures, and treatment square measure all attainable

Enhanced mobile broadband – providing considerably quicker knowledge speeds and larger capability keeping the planet connected. New applications can embrace fastened wireless net access for homes, outside broadcast applications while not the requirement for broadcast vans, and larger property for individuals on the move.
For communities, 5G Network can alter the association of billions of devices for our good cities, good colleges and good homes, good and safer vehicles, enhance health care and education, and supply a safer and a lot of economical place to measure.

For businesses and trade, 5G and IoT can offer a wealth of knowledge permitting them to realize insights into their operations like ne'er before. Businesses can operate and create key choices driven by knowledge, initiate in agriculture, good farms and producing, paving the manner for value savings, higher client expertise and long run growth.

New and rising technologies like virtual and increased reality are going to be accessible by everybody. video game provides connected experiences that weren't attainable before. With 5G and VR you'll be able to jaunt your favorite town, watch a live soccer match with the sensation of being at the bottom, or perhaps be able to examine property and rehearse a replacement home all from the comfort of your couch.

5G Network can keep U.S. connected in tomorrow’s good cities, good homes and good colleges, and alter opportunities that we have a tendency to haven’t even thought of however.

Connected Farms

5G Enhanced Mobile Broadband and IoT will revolutionise agriculture and farming.

When Did 5G Launch?

Initial 5G network services commenced in several countries in 2019 and widespread accessibility of 5G is predicted by 2025.

What Are The First Applications For 5G?

Fixed wireless access for homes and increased mobile broadband services square measure the primary applications victimization new 5G phones, tablets, wireless access modems and hot spots.

What Do 5G Devices Offer?

The prime edges of 5G Network devices are going to be considerably quicker speeds in knowledge access, downloading and streaming content. additionally, 5G devices can have inflated computing power and create use of the lower latency, that means that the devices can fancy just about fast connections to the network, further as larger property once on the move thanks to the employment of advanced antenna beam steering.

What  Devices Are Available For 5G?

Mobile handsets, tablets and hot spots equipped with 3G, 4G and 5G network property were launched in 2019 and low latency and widespread machine to machine applications victimization 5G are going to be developed within the coming back years.

How Does 5G Work?

Most operators can at first integrate 5G networks with existing 4G networks to supply endless association.

5G Network Architecture

5G network specification illustrating 5G and 4G operating along, with central and native servers providing quicker content to users and low latency applications.

A mobile network has 2 main parts, the ‘Radio Access Network’ and therefore the ‘Core Network’.

The Radio Access Network - consists of varied varieties of facilities together with tiny cells, towers, masts and dedicated in-building and residential systems that connect mobile users and wireless devices to the most core network.

Small cells are going to be a significant feature of 5G networks notably at the new mm wave (mmWave) frequencies wherever the affiliation vary is extremely short. to supply never-ending affiliation, tiny cells are going to be distributed in clusters looking on wherever users need affiliation which is able to complement the macro network that has wide-area coverage.

5G Macro Cells can use MIMO (multiple input, multiple output) antennas that have multiple components or connections to send and receive a lot of knowledge at the same time. The profit to users is that a lot of folks will at the same time connect with the network and maintain high outturn. wherever MIMO antennas use terribly giant numbers of antenna components they're usually stated as ‘massive MIMO’, however, the physical size is analogous to existing 3G and 4G base station antennas.

The Core Network - is that the mobile exchange and knowledge network that manages all of the mobile voice, knowledge and web connections. For 5G, the ‘core network’ is being redesigned to higher integrate with the net and cloud primarily based services and additionally includes distributed servers across the network rising response times (reducing latency).

Many of the advanced options of 5G together with network perform virtualization and network slicing for various applications and services, are going to be managed within the core. the subsequent illustration shows samples of native cloud servers providing quicker content to users (movie streaming) and low latency applications for vehicle collision turning away systems.


Example of a neighborhood server during a 5G network providing quicker affiliation and lower response times

Network Slicing – permits a sensible thanks to phase the network for a selected business, business or application. for instance emergency services may treat a network slice severally from alternative users.

Network perform Virtualization (NVF) - is that the ability to instantiate network functions in real time at any desired location inside the operator’s cloud platform. Network functions that accustomed run on dedicated hardware for instance a firewall and cryptography at business premises will currently treat computer code on a virtual machine. NVF is crucial to modify the speed potency and nimbleness to support new business applications and is a crucial technology for a 5G prepared core.

5G Working With 4G

When a 5G network affiliation is established, the User instrumentation (or device) can connect with each the 4G network offer|to supply|to produce} the management signalling and to the 5G network to assist provide the quick knowledge affiliation by adding to the prevailing 4G capability.
Where there's restricted 5G coverage, the info is carried on the 4G network providing the continual affiliation. basically with this style, the 5G network is complementing the prevailing 4G network

Better Connection-Always Connected

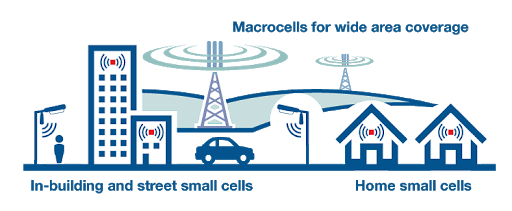

5G networks square measure designed to figure in conjunction with 4G networks employing a vary of macro cells, tiny cells and dedicated in-building systems. tiny cells square measure mini base stations designed for terribly localised coverage usually from ten metres to a number of hundred metres providing in-fill for a bigger macro network. tiny cells square measure essential for the 5G networks because the mmWave frequencies have a awfully short affiliation vary.

Macrocells For Wide Area Coverage

Increased Spectrum-Greater Capacity,More Users And Faster Speed

In several countries the initial frequency bands for 5G network square measure below half-dozen gigahertz (in several cases within the three.3-3.8 gigahertz bands) and similar frequencies to existing mobile and Wi-Fi networks. extra mobile spectrum higher than half-dozen gigahertz, together with the 26-28 gigahertz bands usually stated as mm (mm) Wave, can offer considerably a lot of capability compared to the present mobile technologies. the extra spectrum and larger capability can modify a lot of users, a lot of knowledge and quicker connections. it's additionally expected that there'll be future reprocess of existing low band spectrum for 5G as inheritance networks decline in usage and to support future use cases.
The magnified spectrum within the mmWave band can offer localised coverage as they solely operate over short distances. Future 5G deployments might use mmW frequencies in bands up to eighty six gigahertz.

5G Spectrum

Mobile spectrum showing the oftenness vary from 3-100 gigahertz with new 5G spectrum higher than 6GHz.

Other radio services (TV, Wi-Fi, fastened links & Satellite) square measure shown for reference. extra info on the spectrum is on the market here

Massive Mimo

multiple part base station - larger capability, multiple users, quicker knowledge

5G network can use ‘massive’ MIMO (multiple input, multiple output) antennas that have terribly giant numbers of antenna components or connections to send and receive a lot of knowledge at the same time. The profit to users is that a lot of folks will at the same time connect with the network and maintain high outturn.
The overall physical size of the 5G large MIMO antennas are going to be almost like 4G, but with a better frequency, the individual antenna part size is smaller permitting a lot of components (in way over 100) within the same physical case.
5G User instrumentation together with mobile phones and devices also will have MIMO antenna technology designed into the device for the mmWave frequencies.

Base Stations

4G sector base station and 5G base station with a replacement multi part large MIMO antenna array. the physical size of the 5G base station antenna is predicted to be almost like a 4G base station antenna.

MIMO - Beam Steering

Beam steering may be a technology that enables the huge MIMO base station antennas to direct the radio emission to the users and devices instead of altogether directions. The beam steering technology uses advanced signal process algorithms to work out the simplest path for the radio emission to achieve the user. This will increase potency because it reduces interference (unwanted radio signals).

Mimo Beamforming

Massive MIMO antenna and advanced beam steering optimises EMF and increases efficieny.

Lower Latency-Faster Response Times

Lower latency with 5G is achieved through significant advances in mobile device technology and mobile network architecture.

Technology	Response time (milliseconds)
4G - LTE systems	20-30 ms
5G - enhanced mobile broadband	4-5 ms
5G - URLLC (Ultra Reliable Low Latency Communications) systems	1 ms

5G Network - Mobile specification vital changes in each the Core Network (Core) and Radio Access Network (RAN) ar needed to deliver low latency.

Core Network Changes With the redesigned core network, signalling and distributed servers, a key feature is to maneuver the content nearer to the top user and to shorten the trail between devices for vital applications. smart examples ar video on demand streaming services wherever it's doable to store a duplicate or ‘cache’ of in style content in native servers, that the time to access is faster.

Radio Access Network Changes to realize the low latency, the Radio Access Network (RAN) can ought to be re-configured terribly} manner that's extremely versatile and computer code configurable to support the very totally different characteristics of the categories of services that the 5G system envisages.

Low latency and high responsibility over the air interface needs new radio techniques to minimise the time delays through the radio inside some TTIs (time transmit intervals) along side hardiness and cryptography enhancements to realize high degrees of responsibility (e.g. one message is delayed or lost in each billion).

Implementing a virtual, dynamic and configurable RAN permits the network to perform at terribly low latency and high turnout, however it conjointly permits the mobile network to regulate to changes in network traffic, network faults and new topology necessities.

What can be re-configured? The new design will exist as a 4G/5G split RAN wherever the user plane (5G) and also the management plane (4G) ar separate. this needs the separation of general purpose hardware and specialised network hardware. The practicality of general purpose hardware (nodes) ar appropriate for network functions virtualisation (NFV), wherever the specialised hardware within the RAN can become dynamically configurable.
